CNC Write!

Rotary and Linear Axis Engraving

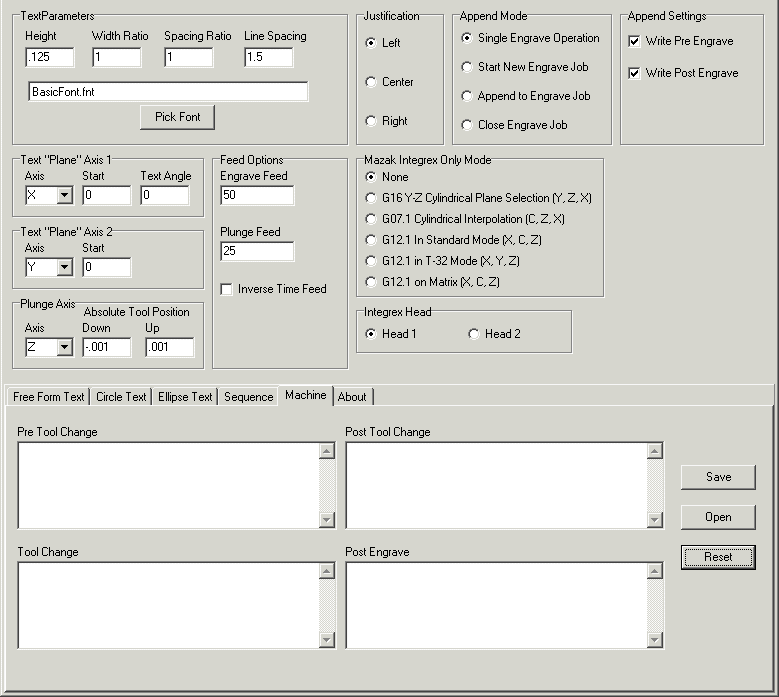

Machine Tab - CNC Write - Rotary and Linear Axis Engraving

See details for this section below the image.
Free From Test Circle Text Ellipse Text Sequence Sequence Sequence Sequence Sequence Sequence Sequence Machine Tab - CNC Write - Rotary and Linear Axis Engraving Screen Shot
Click Tabs and other sections to see details for that section.

The four input fields here are for setting up all pre and post tool change G-Codes. The reason for having "Pre Tool Change", "Tool Change", and "Post Tool Change" instead of just a single Pre Engrave, is that the various Integrex modes need to insert G-Codes between each of these sections. For other machines it is not necessary to use all 4 blocks. For most users all you need to know is all of the G-Codes in "Pre Tool Change", "Tool Change", and "Post Tool Change" will be added at the beginning of your program and the G-Codes in "Post Engrave" will be added to the end of your programs. All of the G-Codes in these for input fields can be saved in a machine file so the settings for several different machines or types of jobs can be saved and recalled later.
